A capsule elevator, also known as a “capsule lift” or “pod elevator,” is a type of vertical transportation system used to move people or goods between different floors or levels in a building. Unlike traditional elevators, which consist of a cabin or car enclosed in a shaft, a capsule elevator features a fully enclosed capsule or pod that travels along a guided track within a cylindrical or tube-shaped structure.



The capsule itself is typically made of glass or transparent materials, providing passengers with panoramic views as they move between floors. These elevators often find applications in iconic structures, observation decks, or tourist attractions where the scenic views during the elevator ride are desirable.



Capsule elevators can offer a unique and memorable experience for users, allowing them to enjoy a 360-degree view of their surroundings as they ascend or descend. They are often designed to provide a smooth and comfortable ride, equipped with advanced safety features to ensure passenger security.



It’s important to note that while capsule elevators have gained popularity in recent years, they are still relatively rare compared to conventional elevator designs and are typically found in specific architectural projects or high-end developments.

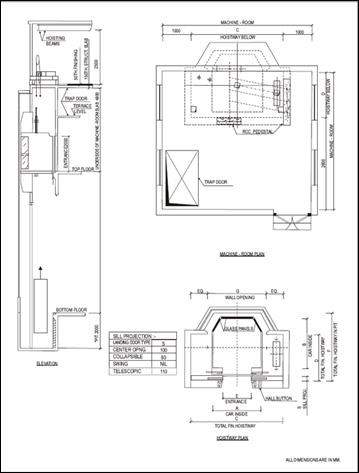

CAPSULE / PANORAMIC ELEVATORS- SAMPLE DRAWING (3 GLASS PANEL)

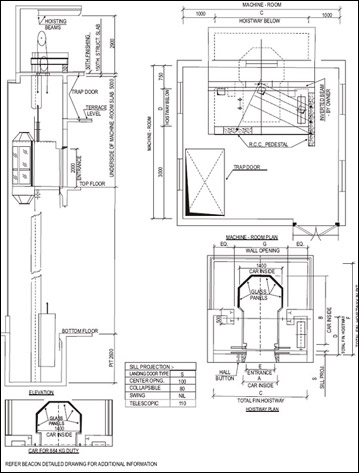

CAPSULE / PANORAMIC ELEVATORS - SAMPLE DRAWING (5 GLASS PANEL)

CAPSULE / PANORAMIC ELEVATORS- DIMENSION (3 GLASS PANEL)

Persons 8 10 13 16 20
LOAD 544 kg. 680 kg. 884 kg. 1000 kg. 1360 kg.
A 1100 1350 1350 1600 1600
B 1400 1400 1700 1700 2000
C 2100 2400 2400 2600 2800
D 1300 1300 1600 1600 1900
E 800 800 900 1000 1000
F 2200 2200 2500 2500 2800
G 1400 1650 1650 1900 1900
